Sunair 8220WB 1 kW HF TRANSMITTER, WIDEBAND

BRE2TA-compliant equipment supports bandwidths up to 48 kHz

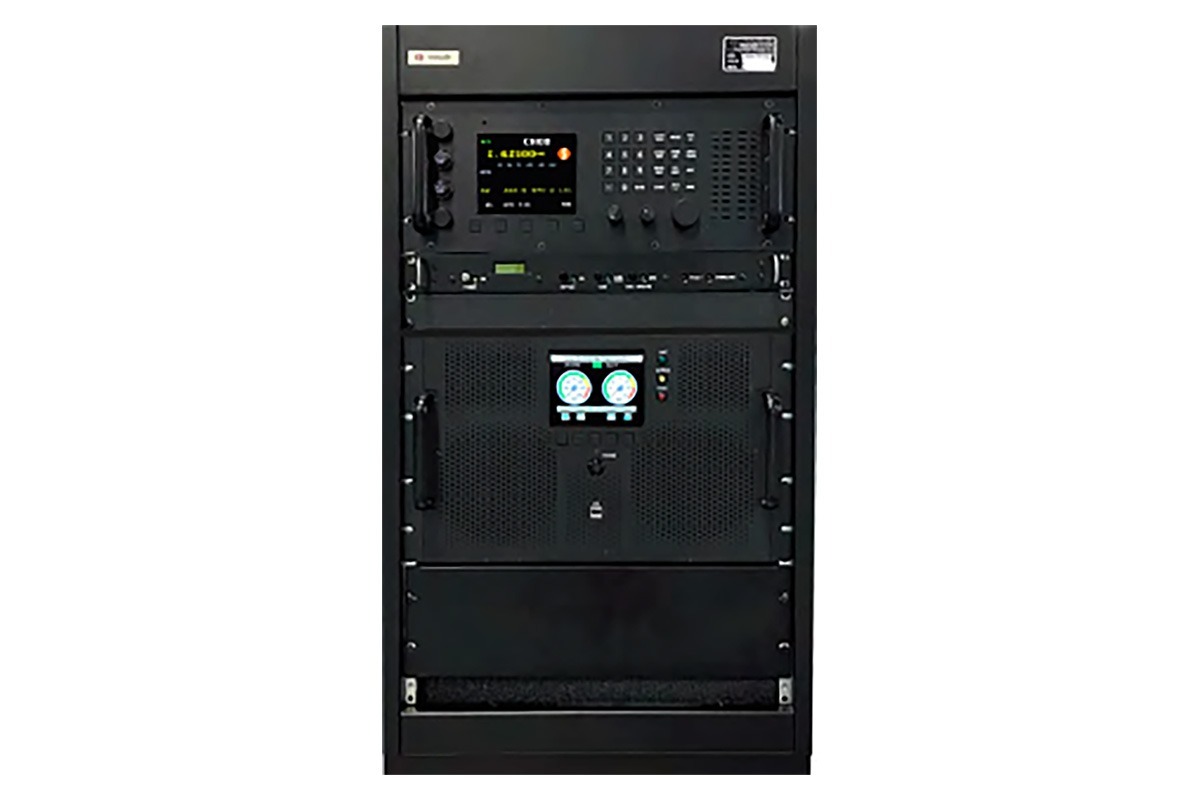

The Sunair 8220WB 1 kW HF Transmitter, Wideband operates continuously (100% duty) and consists of the Sunair RT-8500WB Software-Defined Wideband Next Generation HF SSB/ISB Transceiver, the F-9810 Post-selector, and the LPA-8220 1-kW Power Amplifier, all mounted on a pre-wired custom cabinet for ease of installation and maintenance.
The RT-8500WB transceiver uses software-defined digital signal processing (DSP) technology, which supports the latest developments in high-speed waveform processing. This technology enhances the functionality of the CPU as well as the Synthesizer, Digital Audio, and Digital IF stages. It operates in USB, LSB, ISB, AMe, FMn, CW, and 48-kHz WBHF. The audio interface supports analog or VoIP connections, while the CPU allows for remote control and programming via Ethernet or serial port.
The RT-8500WB transceiver incorporates a next generation 48-kHz Wideband capable HF Modem and ALE controller. This provides a purpose-built standalone hardware platform for strategic and maritime WBHF Beyond Line-of-Sight (BLOS) and Line-of-Sight (LOS) radio communications. The Wideband Automatic Link Establishment (WALE) or Fourth Generation (4G ALE) controller compliant with MIL-STD-188-141D Appendix G is used in setting up and managing WBHF links. The WALE controller provides fast and robust link setups by dynamically adapting the bandwidth and frequency
offset of wideband channels to avoid interference and optimize throughput. The WALE link setup controller also provides inter-operation with second generation ALE (2G ALE) and third generation ALE (3G ALE/FLSU). WALE supports (as 3G ALE) both synchronous and asynchronous modes.
Advanced built-in-test (BITE) capability reports the status of the Sunair 8220WB 1 kW HF Transmitter, Wideband down to the Lowest Replaceable Unit (LRU) level providing English messages on the display of the radio, and then to a remote site when configured. Individual LRU fault indication and the system’s intuitive modular design allows for ease of maintenance and upgrade throughout the equipment life cycle at minimal expense. These high-performing niche products are in daily service as integral components of critical strategic communications solutions for leading defense, peacekeeping, and aviation agencies around the world.

Sunair 8220WB 1 kW HF Transmitter, Wideband

• Analog or VoIP audio interface
• VoIP ATM ED-137B/C (EUROCAE ED-137C)
• Software-Defined Next Generation HF SSB/ISB Transmitter
• High efficiency solid state design Full power into load VSWR up to 2:1
• Comprehensive BITE to LRM (Lowest Removable Module) Full function remote control via serial or Ethernet
• Remote control via RS-232/422/485 and Ethernet
• Tactical Data Link – MIL-STD-188-203-1A TADIL A and Link 11/22 (requires external modems and controllers) HF Data – MIL-STD-188-110A/B
• Internal 115 / 230 Vac ±15 %; 50 / 60 Hz; single phase power supply
• Data Link – MIL-STD-188-203-1A TADIL A and Link 11/22 (factory installed option)
• HF Data – MIL-STD-188-110 A/B/C and STANAG
• ALE – 2G MIL-STD-188-141 A/B/C and 3G STANAG 4538
• Secure Digital Voice (MELPe S4591)

Sunair 8220WB 1 kW HF TRANSMITTER DATASHEET

CERTIFICATIONS AND STANDARDS

  • Data Link – MIL-STD-188-203-1A TADIL A and Link 11/2 (factory installed option)
  • Type 1 encryption such as ANDVT, KY-99, KG-84(), and KG-40 as well as commercial privacy devices or optional internal MELPe digital voice F/W with DES 56, AES 128 & AES 256 encryption functions
  • HF Data – MIL-STD-188-110 A/B/C and STANAG
  • ALE – 2G MIL-STD-188-141 A/B/C and 3G STANAG 4538
  • Secure Digital Voice (MELPe S4591)
  • MIL-STD-188-203-1A and STANAG 5511/5522 (TADIL-A/Link 11 and NILE/Link 22) for data link operation
  • MILSTD-188-110 A/B/C and STANAG HF modem waveforms
  • MIL-STD-188-141 A and FS1045A
  • MIL-STD-188-141 B and STANAG 4538
  • MIL-STD 810F, Method 516.5, Procedure 1
  • MIL-STD 810F, Method 514.5 & MIL-STD-167-1
  • EN 300 373-2 v1.2.1
  • EN 301 843-5 v1.1.1
  • EN 60950
  • Notified Body 1177
  • STANAG 5066 controller
