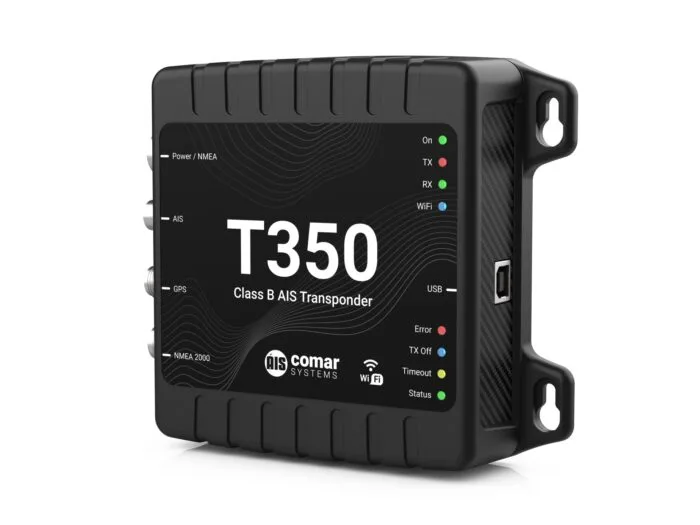

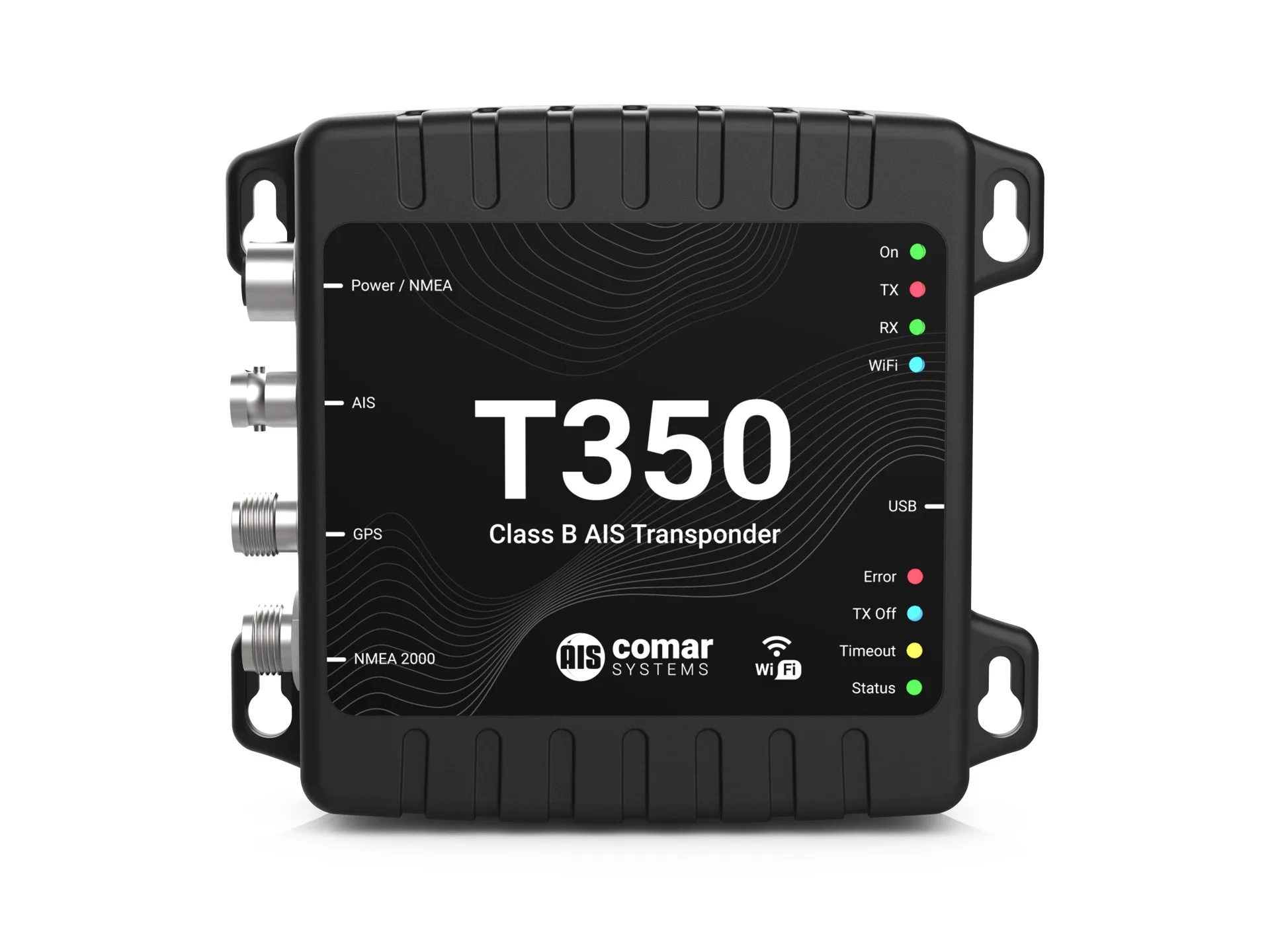

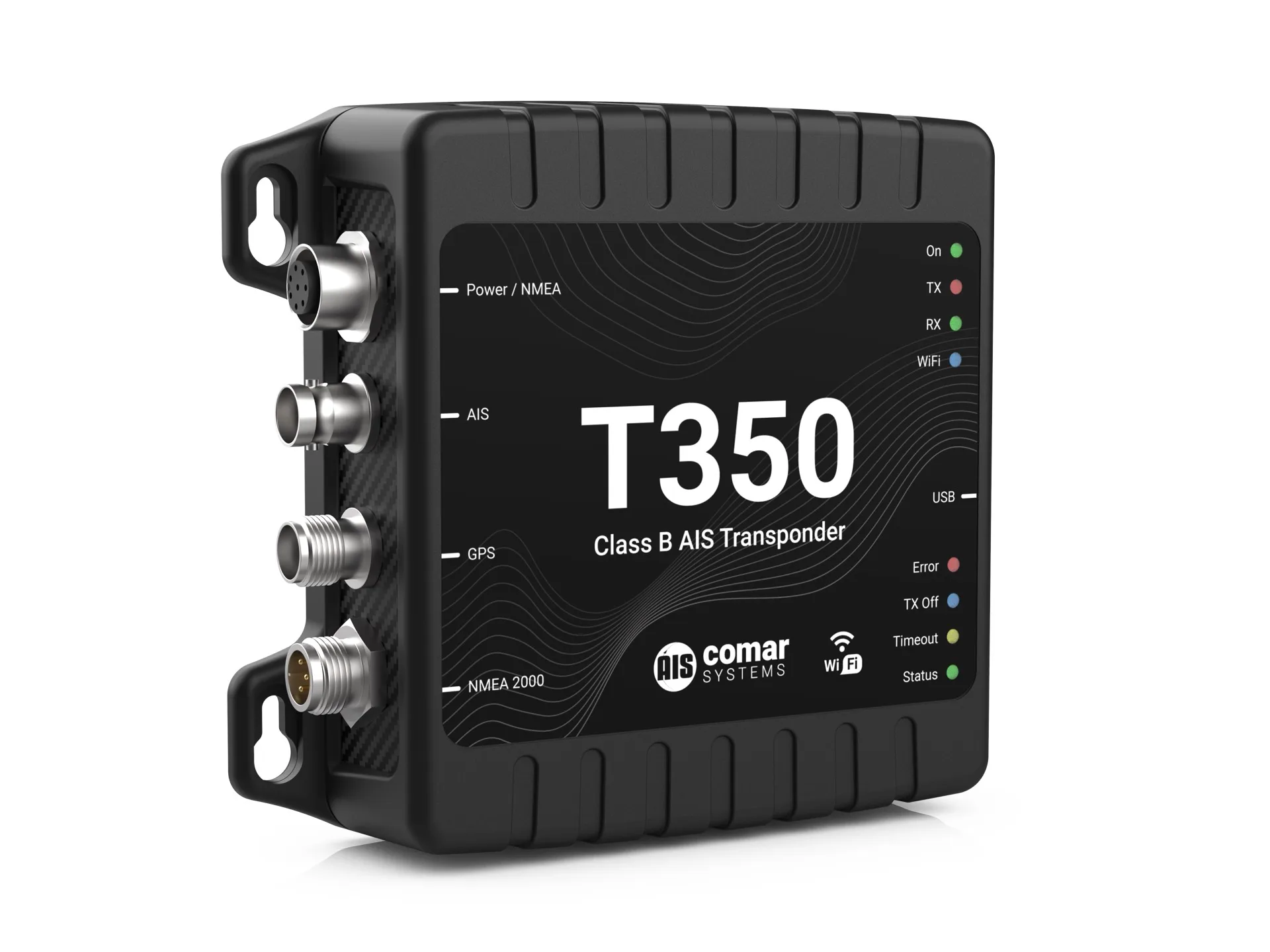

COMAR T350 Class B SOTDMA AIS Transponder with Wi-Fi
The T350 is a compact, rugged Class B SOTDMA AIS transponder designed for commercial, fishing, and leisure vessels. It enables vessels to voluntarily broadcast their position when not necessarily required to carry a Class A AIS transponder.
When connected to external VHF and GNSS antennas (not supplied), the T350 transmits your vessel’s data while receiving AIS information from other vessels, shore stations, and aids to navigation.
Its compact footprint and improved mounting system simplify installation, while the durable ABS housing with carbon-reinforced connector plates ensures long-term reliability in demanding marine environments.
Built-in Wi-Fi allows AIS data to be streamed wirelessly to mobile devices, PCs, and tablets, supporting popular navigation apps. The Wi-Fi can operate as an onboard access point or connect to an existing network, enabling both AIS data sharing and internet access.
Programming and setup can be performed via USB, with full compatibility with NMEA 0183 and NMEA 2000 systems.
With its integrated Wi-Fi, the R250 also streams AIS and NMEA data wirelessly to mobile devices or PCs. Housed in a durable ABS enclosure with carbon-reinforced side panels, it combines rugged construction with a compact, modern design.
FEATURES
- Class B SOTDMA AIS transponder
- Built-in Wi-Fi for wireless configuration and AIS data streaming to multiple devices
- Operates in Access Point, Station, or combined AP+STA modes
- Supports TCP/UDP connections for up to 24 simultaneous clients
- Compact design with simplified mounting and reduced footprint
- Rugged ABS housing with carbon-reinforced connector plates
- NMEA 0183 and NMEA 2000 compatible
- Automatic transmission of vessel position, speed, and heading
- Receive and monitor AIS-equipped vessels on PC, tablet, or chart plotter
- Transmitter OFF mode for silent operation or reduced power consumption
APPLICATIONS
- Commercial, fishing, and leisure vessels
- Vessels requiring Class B SOTDMA AIS compliance
COMAR T350 Class B SOTDMA AIS Transponder with Wi-Fi
The T350 is a compact, rugged Class B SOTDMA AIS Transponder designed for commercial, fishing, and leisure vessels.
KEY FEATURES
Transmission & Safety
- 5W Transmit Power: Doubles the range of standard Class B units for earlier detection by commercial ships.
- SOTDMA Technology: Reserves its own broadcast time slots in crowded waters like a Class A commercial transponder.
- Faster Update Rates: Increases tracking broadcast frequency up to every 5 seconds when moving at higher speeds.
- Silent Mode Toggle: Allows you to turn off tracking transmissions while continuing to receive data from other vessels.
Wireless & Networking
- Integrated Wi-Fi: Wirelessly streams live AIS data to mobile navigation apps on tablets, phones, and laptops.
- Multi-Device Support: Connects up to 24 concurrent wireless users over secure TCP/UDP network connections.
- Versatile Wi-Fi Modes: Configures as a standalone Access Point, a client Station, or a combination of both.
- Triple Data Ports: Interfaces simultaneously with NMEA 2000, NMEA 0183, and high-speed USB 2.0 laptop links.
Hardware & Power
- Dual Antenna Inputs: Built with a BNC VHF port and a dedicated TNC connector for the GPS antenna.
- Low Power Draw: Consumes under 3 Watts of average power on standard 12V marine batteries.
- Compact Footprint: Measures 140mm x 120mm x 37mm inside a rugged, carbon-reinforced ABS case
